Aqua - La Diva M2 CD Transport

Art.Nr.: AQ-129292-UA
Hersteller: Aqua/Acoustic Quality

FEATURES• High performance proprietary ISDC (Isolated Synchronous Discrete Circuit) digital decoding  and clock manager

• Custom designed discrete circuit with high-speed photocouplers for Galvanic and magnetic isolation between CD drive unit and digital output

• Ultra massive chassis construction and newly developed high-rigidity sub chassis with Nextel for CD drive unit cancels internal and external acoustic and mechanical vibrations, enabling exceptionally accurate "Red Book" RF signal

• DC disc drive motor allows to read the data accurately and minimize Jitter

• Moplen clamp to avoid flywheel masses and vibrations

• Sophisticated signal processing technology assures excellent CD Red Book signal

• High-performance multi-stage voltage regulator (high-current stage for accurate servo DISC drive rotation, tracking and focus)

• Jitter free digital interface AQlink (I2S protocol), uncompromising digital connection to our DACs

• etherCON RJ45 (AQlink) output connection to DAC, employs CAT6 cable can connect both RJ45 and professional etherCON RJ45

• Separate custom-built toroidal transformers for digital and servo motors/actuators

• MODULAR DESIGN with upgradeable multi board system

• Precision Philips CD-Pro2 transport customized

• High-quality parts selected for sound quality:
   - 105° long life capacitors
   - low noise Metal Foil ultra-precision resistors
   - metallized film pulse capacitor
   - ultra-fast diodes
   - halogen free cables

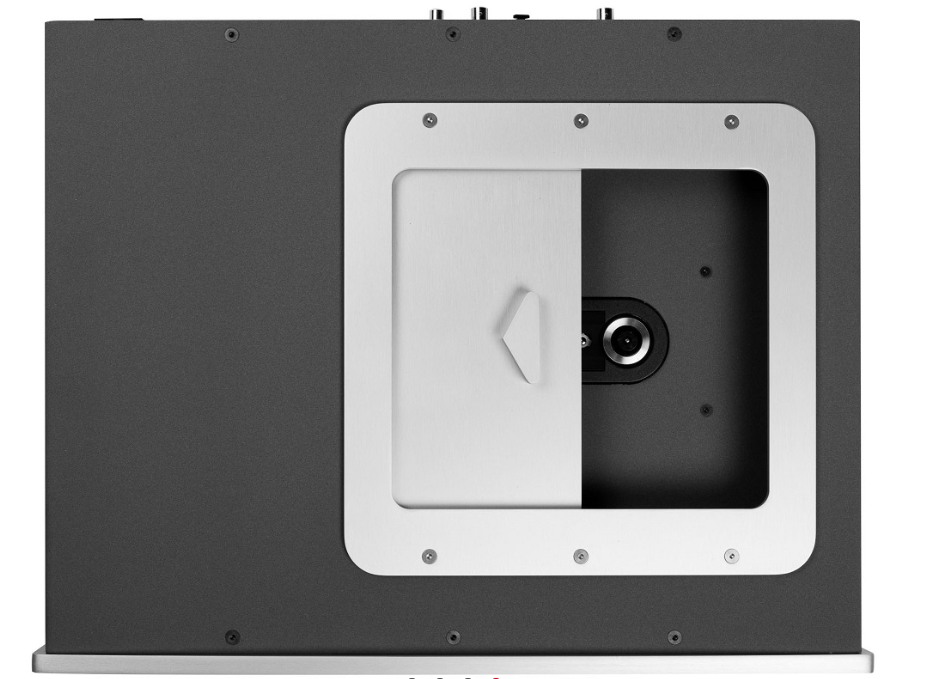

• Aluminum top loading tray machined from billet

• Non-magnetic low-resonance aluminum chassis with Nextel

• Field upgradeable firmware

• OLED display with user off-selectable illumination

• Designed and handmade in Italy

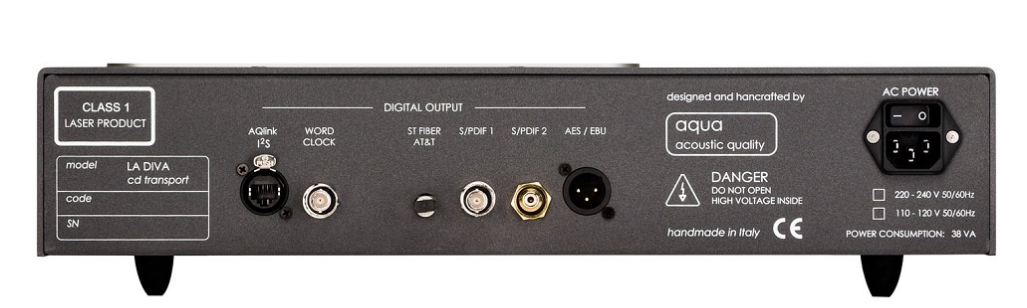

• Output:
- etherCON RJ45 - AQlink (I2S serial bus)
- XLR AES/EBU
- BNC coax (S/PDIF)
- RCA coax (S/PDIF)
- ST fiber (AT&T)
- BNC word clock
