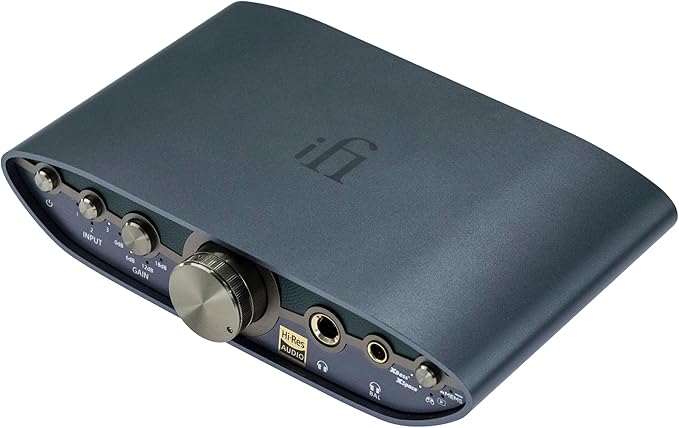

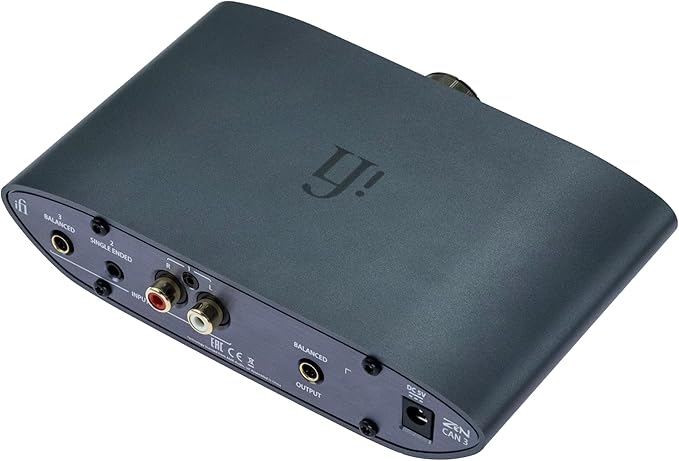

iFi - ZEN Can 3

Analoge Eingänge

SE RCA L/R: 2.0 V nominal @ 0 dBFS, 1 MΩ Eingangsimpedanz
SE 3.5 mm: 1.0 V nominal @ 0 dBFS, 1 MΩ Eingangsimpedanz
Balanced 4.4 mm: 4.0 V nominal @ 0 dBFS, 24 kΩ Eingangsimpedanz

Abmessungen

158 × 117 × 35 mm (6.2" × 4.6" × 1.4")

Dynamikbereich (DNR)

Line Section: ≥119 dB(A)
Headphone Section:
Balanced 4.4 mm: ≥119 dB(A) @ 0 dBFS
SE 6.35 mm: ≥119 dB(A) @ 0 dBFS

Frequenzgang

10 Hz – 200 kHz (−3 dB)

Gain-Einstellungen

0 dB, 6 dB, 12 dB, 18 dB

Kopfhörerausgang (max)

Balanced 4.4 mm: >15.1 V / 385 mW (@ 600 Ω), >6.2 V / 1.200 mW (@ 32 Ω)
SE 6.35 mm: >7.6 V / 98 mW (@ 600 Ω), >7.2 V / 1.600 mW (@ 32 Ω)

Kopfhörerausgang (RMS)

Balanced 4.4 mm: >11.5 V / 2.000 mW (@ 64 Ω)
SE 6.35 mm: >7.2 V / 1.600 mW (@ 32 Ω)

Eingangsspannung

DC: 5 V / 2.5 A
AC: 100–240 V, 50/60 Hz

Maximaler Eingangspegel

SE RCA: 3.8 V RMS
SE 3.5 mm: 1.92 V RMS
Balanced 4.4 mm: 7.4 V RMS

Gewicht (Netto)

495 g (1.09 lbs)

Ausgangsimpedanz

Line Section: Headphone Section:
Balanced 4.4 mm: SE 6.35 mm:

Stromverbrauch

Kein Signal: ~5 W
Maximales Signal: ~13 W

Signal-Rausch-Verhältnis

Line Section: ≥125 dB (7.3 V 4.4 mm Input @ 200 kΩ)
Headphone Section:
Balanced 4.4 mm: ≥125 dB (7.3 V Input @ 600 Ω)
SE 6.35 mm: ≥122 dB (1.9 V Input @ 600 Ω)

THD+N

Line Section: 0.006 % (0 dB @ 200 kΩ Last)
Headphone Section:
Balanced 4.4 mm: SE 6.35 mm:
