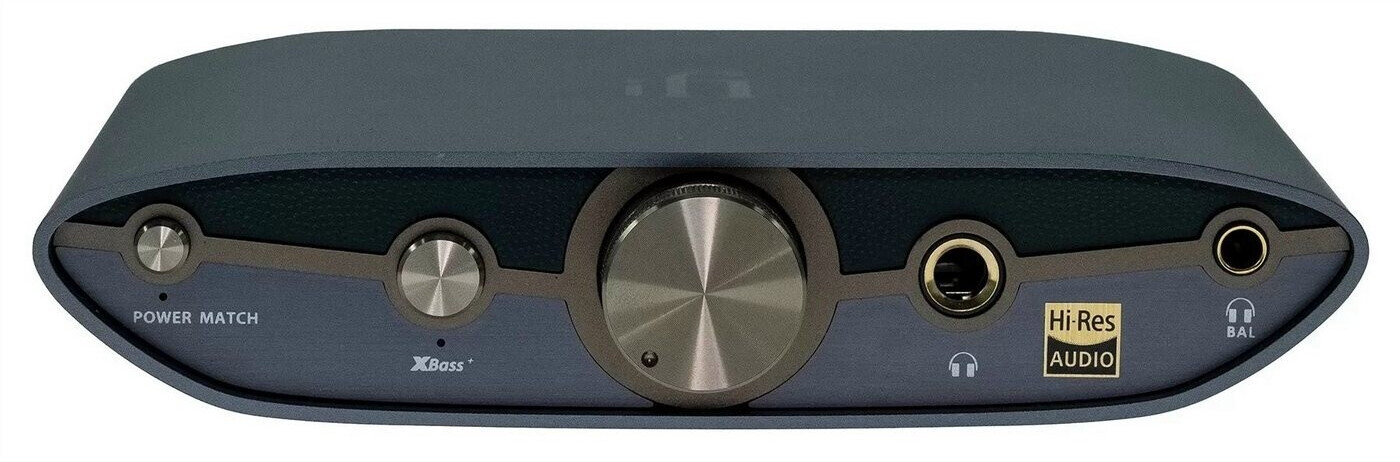

iFi - ZEN DAC 3

DAC

Bit-Perfect DSD & DXD DAC von Burr Brown

Abmessungen

158 × 115 × 35 mm (6.2" × 4.6" × 1.4")

Dynamikbereich (DNR)

Line Section: ≥113 dB(A) @ 0 dBFS
Headphone Section: ≥109 dB(A) @ 0 dBFS (6.2 V 4.4 mm / 3.3 V 6.35 mm)

Unterstützte Formate

PCM: 768 / 705.6 / 384 / 352.8 / 192 / 176.4 / 96 / 88.2 / 48 / 44.1 kHz
DSD: 512 / 256 / 128 / 64
DXD: 768 / 705.6 / 384 / 352.8 kHz
MQA: Decoder

Frequenzgang

5 Hz – 90 kHz (±3 dB)

Kompatibilität

Sony PS5 und Nintendo Switch

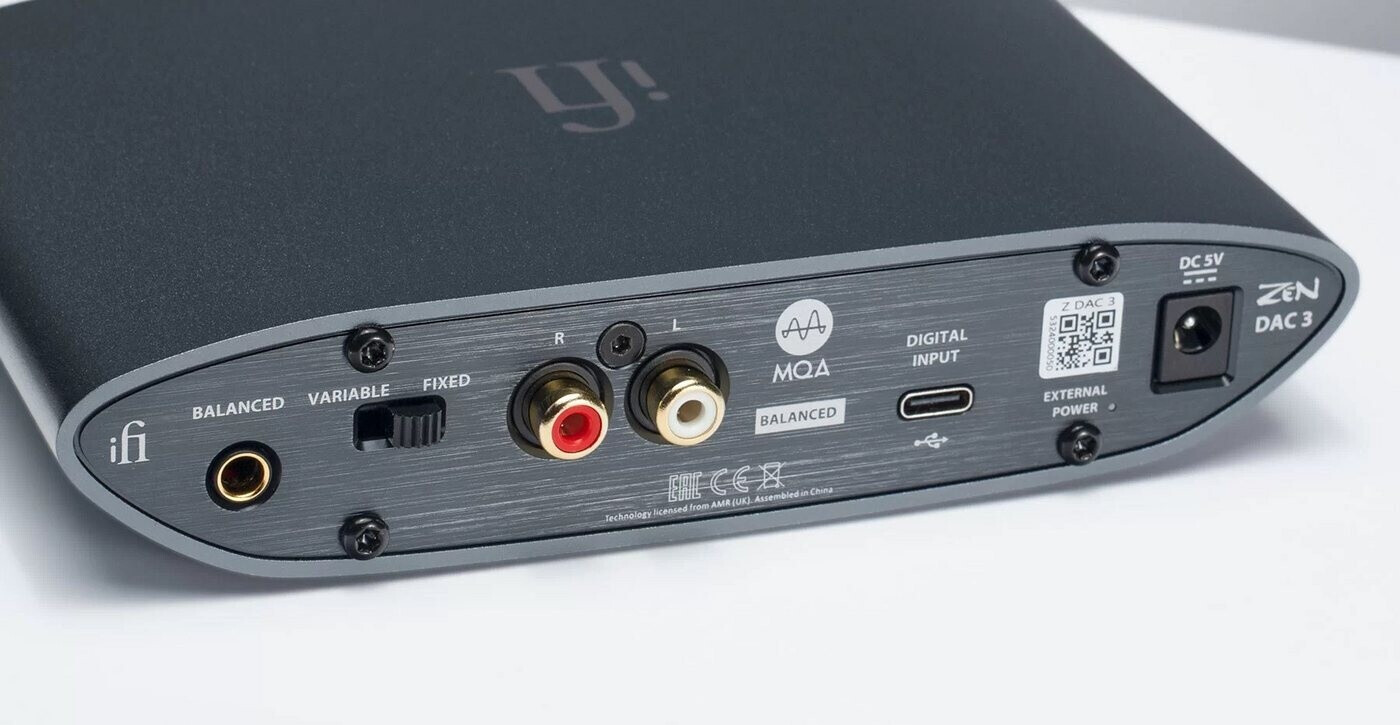

Eingänge

USB Type-C

Maximale Ausgangsleistung

Headphone Section:
Balanced 4.4 mm: >70 mW @ 600 Ω, >300 mW @ 32 Ω
Single-Ended 6.35 mm: >18 mW @ 600 Ω, >210 mW @ 32 Ω

Gewicht (Netto)

456 g (1.0 lbs)

Ausgangsimpedanz

Line Section:
Balanced 4.4 mm: ≤200 Ω
Single-Ended RCA: ≤100 Ω
Headphone Section: ≤1 Ω

Stromverbrauch

Kein Signal: ~0.5 W
Maximales Signal: ~2.5 W

RMS Ausgangsleistung

Headphone Section:
Balanced 4.4 mm: >390 mW @ 64 Ω
Single-Ended 6.35 mm: >18 mW @ 600 Ω, >210 mW @ 32 Ω

THD+N

Line Section:
Balanced 4.4 mm: Single-Ended 6.35 mm: Headphone Section:
Balanced 4.4 mm: Single-Ended 6.35 mm:

Stromversorgung

USB-C oder DC 5 V / 0.5 A (Mittelpol positiv)
