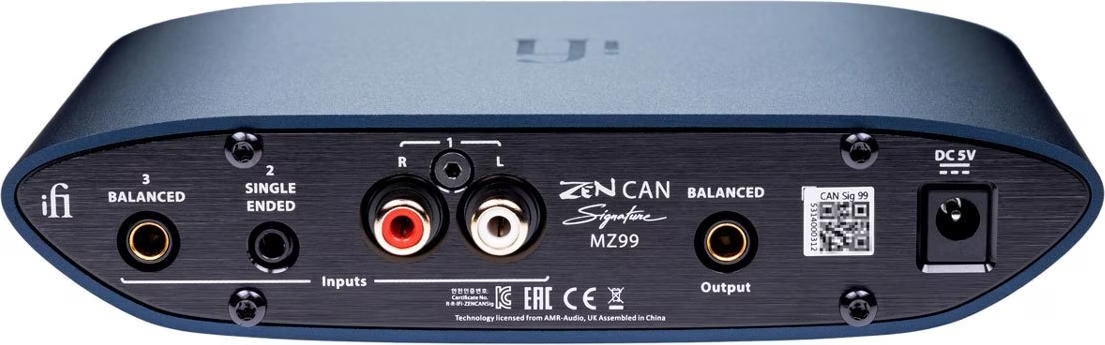

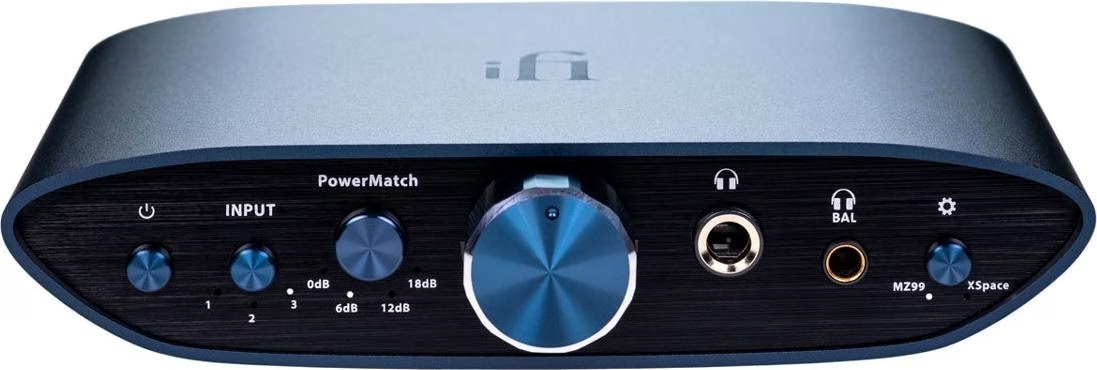

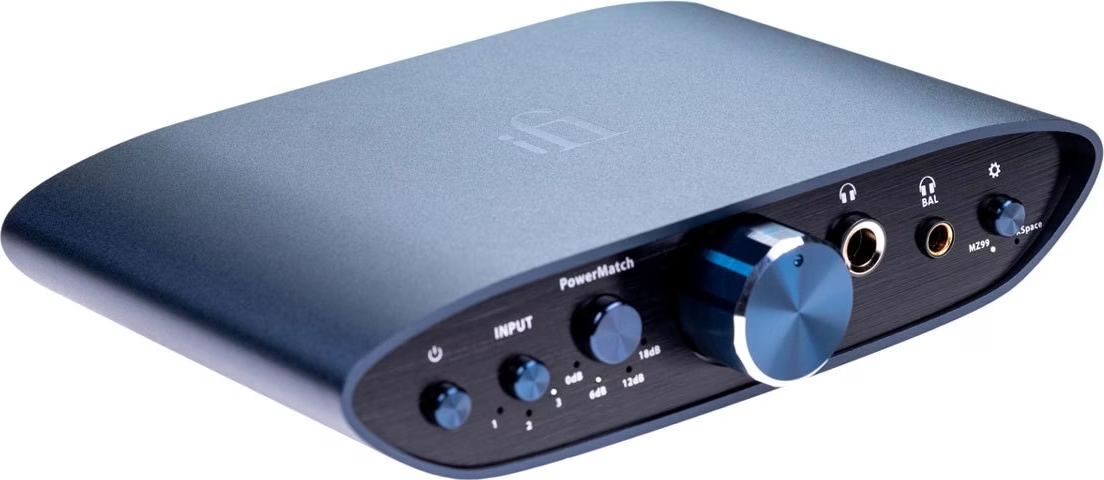

iFi - Zen CAN Signature MZ99

Abmessungen

158 × 117 × 35 mm
6.2" × 4.6" × 1.4"

Frequenzgang

10 Hz – 200 kHz (−3 dB)

Gain-Einstellungen

0 dB, 6 dB, 12 dB, 18 dB

Eingangsspannung

5 V / 2.5 A

Gewicht (Netto)

550 g (1.21 lbs)

Ausgangsspannung

Balanced: 7.4 V RMS
RCA: 3.8 V RMS
3.5 mm: 1.92 V RMS

Line Section Output

Balanced: 6.7 V max (variabel)
Unbalanced: 3.5 V max (variabel)

Headphone Output

Balanced: 6.7 V max @ 600 Ω
Unbalanced: 3.5 V max @ 600 Ω

Ausgangsimpedanz

Line Section: Balanced Headphone Section: Balanced

Ausgangsleistung

Headphone Section:
Balanced: >1000 mW @ 32 Ω, >74 mW @ 600 Ω
Unbalanced: >320 mW @ 32 Ω, >40 mW @ 300 Ω

Stromverbrauch

Kein Signal: ~5 W
Maximales Signal: ~12 W

RMS Ausgangsleistung

Balanced:
>15.1 V / 385 mW (@ 600 Ω)
>11.0 V / 1890 mW (@ 64 Ω)
>6.2 V / 1200 mW (@ 32 Ω)
Unbalanced:
>7.6 V / 98 mW (@ 600 Ω)
>7.4 V / 870 mW (@ 64 Ω)
>6.2 V / 1200 mW (@ 32 Ω)

Signal-Rausch-Verhältnis (SNR)

Balanced: >121 dB(A) (@ 15.2 V)
Unbalanced: >120 dB(A) (@ 7.6 V)
Line Section: Balanced Headphone Section: Balanced

THD+N

Line Section:
Balanced: Unbalanced: Headphone Section:
