Specifications

• OS: Rose OS Ver 1.22.4 (based on Customized Android 7.1)
• Design
  • Size: 430(W) x 316(D) x 123(H) mm
  • Weight: 13 kg
  • Body: Milled from Solid Block of High Purity Aluminum, Minimizing Vibrations and Noise.

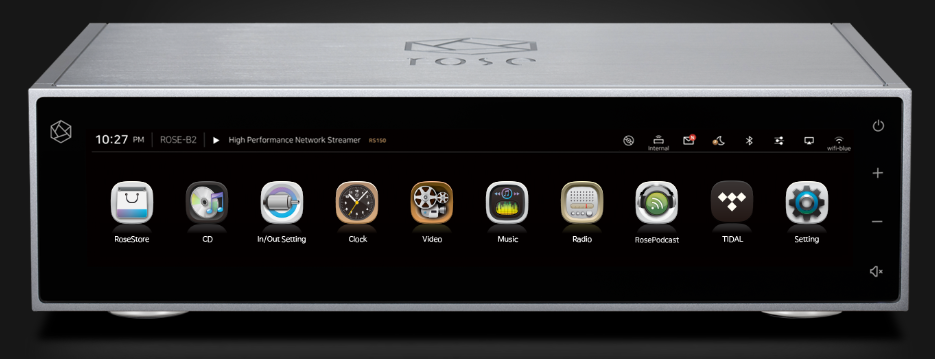

  • Display: 14.9-inch-Wide HD IPS Touch Screen LCD
  • CPU: Hexa Core CPU, Dual-core Cortex-A72 up to 1.8GHz, Quad-core Cortex-A53 up to 1.4GHz
  • GPU: Mali-T864 GPU, OpenGL ES 1.1/2.0/3.0/3.1, OenVG1.1, OpenCL, DX11
  • MEMORY: LPDDR3 4GByte
• DAC Chip: ESS Technology, SABRE ES9038PRO
• Output level: 6.5Vrms (Balanced), 2.2Vrms (Unbalanced)
• THD: 0.0002%(Balanced,1KHz 6.5Vrms), 0.0003%(Unbalanced,1KHz 2.2Vrms)
• THD + N: 0.0003%(Balanced, 1KHz 6.5Vrms), 0.0004%(Unbalanced,1KHz 2.2Vrms)
• IMD: -103dB (Balanced), -103dB (Unbalanced), SMPTE 4:1, 60Hz:7kHz
• Signal to Noise Ratio: 121dB (Balanced),118dB (Unbalanced), A-wt
• Dynamic Range: Max 132 dB (CCITT filter)
• Stereo Crosstalk: Max -138dB, 20-20kHz
• Output Frequency Response: 20Hz to 40,000(+/-0.5dB)
• Output Impedance: 50Ω
• Network connection
  • Network:
    • Wired : Ethernet 10/100/1000 BASE-T
    • Wireless : External USB type WiFi Dongle supported
  • Bluetooth: BT : External USB type BT WiFi Dongle supported. ( A2DP Sink, AVRCP v1.3 ) * A few types of WiFi, BT dongle is not supported.
• Audio service
  • Streaming: Airplay / DLNA / Roon Ready / MQA Full Decoder
  • Music service: TIDAL / Internet Radio / Podcast

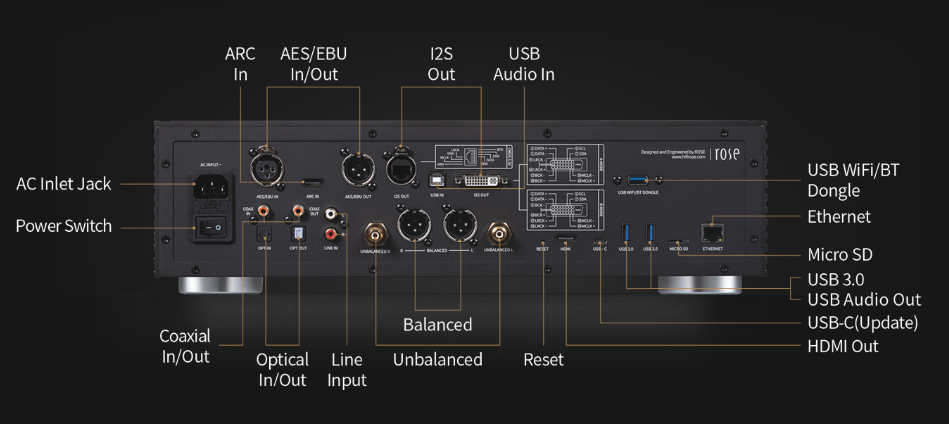

• Input, Output
  • Audio input: Optical x 1, COAX x 1, Line-IN x 1, AES/EBU x 1, HDMI ARC x 1, USB DAC x 1
  • Audio output: Optical x 1, COAX x 1, Pre-OUT (Balanced x 1, Unbalanced x 1), I2S-DVI x 1,I2S-RJ45 x 1, AES/EBU x 1
  • Video output: HDMI 2.0x 1 ( up to 3840 x 2160 / 60Hz )
• Media connection:
  • File system : SMBv1, SMBv2 /FTP / WebDav / NTFS / eXfat / FAT32
  • Storage interface : USB3.0 x 2, MicroSD x 1, SSD x 1
• Supported codec
  • Audio: WAV, FLAC, AIFF, WMA, MP3, OGG, APE, DFF, DSF, AAC, CDA, AMR, APE, EC3, E-EC3, MID, MPL, MP2, MPC, MPGA, M4A
    • PCM : 8KHz~384KHz(8/16/24/32bit per Sample)
    • Native DSD: DSD64(2.8MHz)/DSD128(5.6MHz)/DSD256(11.2MHz)/ DSD512(22.5792Mhz)
  • Video
    • ASF, AVI, MKV, MP4, WMV, MPEG-1, MPEG-2, MPEG-4 H.263, H.264, H.265, VC-1, VP9, VP8, MVC
      H.264/AVC, Base/Main/High/High10 profile@level5.1 up to 4Kx2K@30fps
      H.265/HEVC, Main/Main10 profile@ level 5.1 High-tier up to 4Kx2K@60fps

• Power
  • Input Voltage : AC100-230V 50/60Hz
  • Input Power : 55W
  • Fuse : T3.0AL/250V
• Update: SW update via internet, USB OTA, ROSE Store
• Remote control
  • Remote controller: Bluetooth Remote controller
  • Remote App: ROSE Connect (Android, iOS) / Google PlayStore, App Store
• Accessory: Power cord x 1, Bluetooth Remote controller x 1 (AAA battery x 2), Simple Guide x 1, SSD screw x 4, Bluetooth/WiFi dongle x 1 (sold separately)
