Tube Music Server Series is the result of the most sophisticated combination of in-depth multi-disciplinary knowledge, diverse experience and successful technical and technological applied research, music experience, plentifully testing acoustics, recording and sound reproductions by ThivanLabs’ product designers and developers. These are truly great achievements that we have achieved throughout the development history of ThivanLabs. And you’ll feel these wonderful achievements through the sound you’ll experience on our Latest Generation Devices!
Tube Music Server (TMS) is the first station to PROCESS DIGITAL MUSIC FILES and CONVERT INTO ANALOG AUDIO SIGNALS before being amplified by amplifiers and then transmitted to speakers. This means that the more accurately the signal is converted, the more accurately the sound will be amplified and reproduced for the listener. Our designers and engineers truly understand these prerequisites and accordingly the technical design and product development goals of the TMS Series are to transmit signals most accurately and fully. One thing is for sure, listeners will be surprised by the extremely delicate and captivating sound that TMS converts, transmits and reproduces.
Main models of TMS Series include:
– High End version: TMS-9 Premium
– Upper grade version: TMS-5

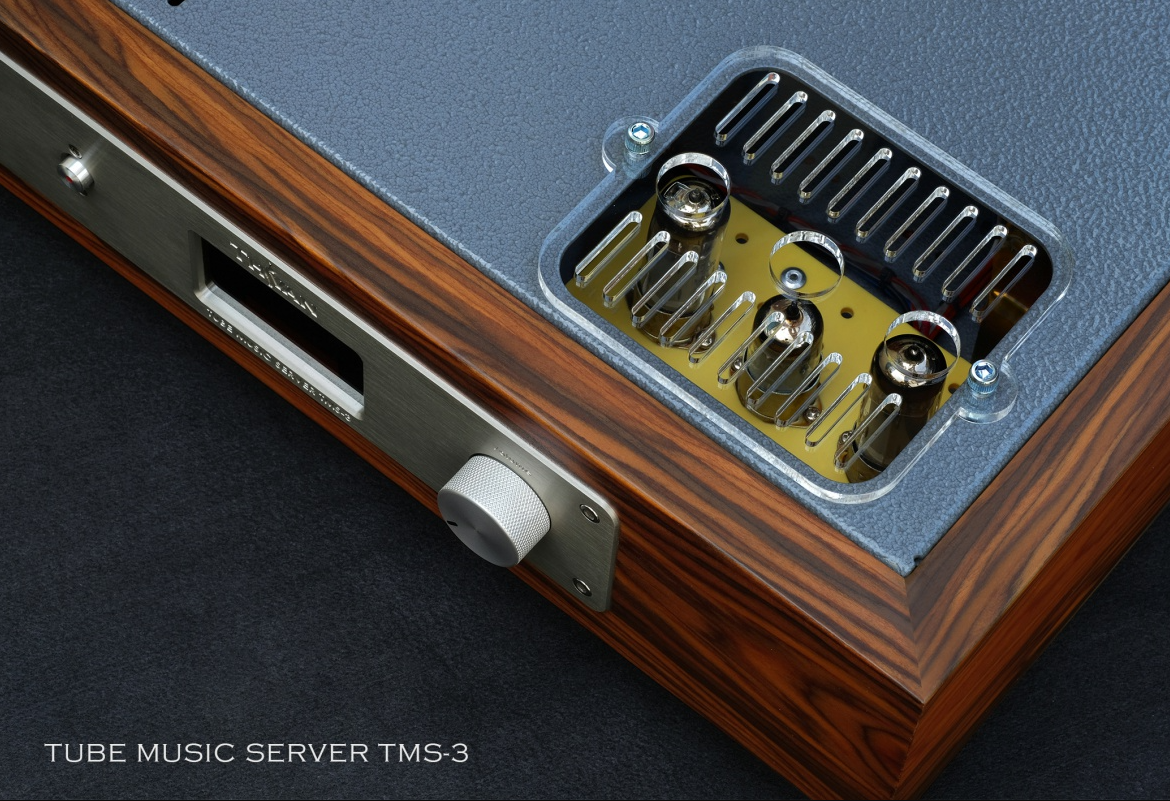

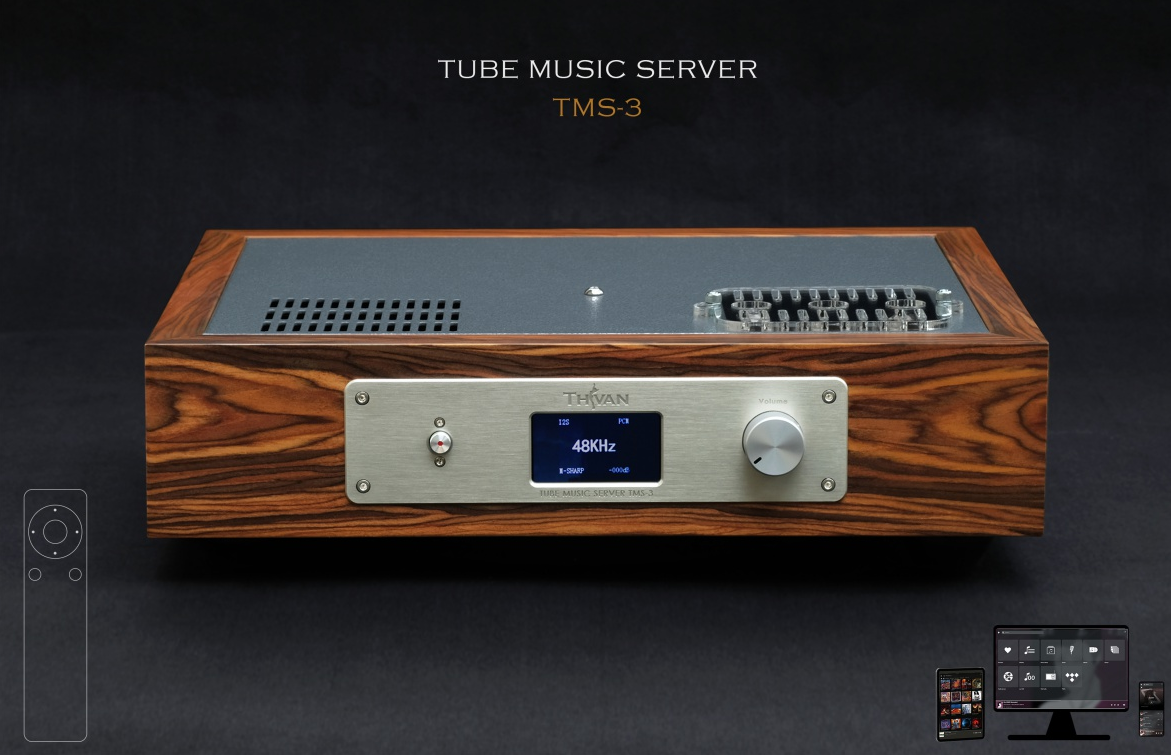

– Standard version: TMS-3
TMS products excel at converting high-quality audio formats. Each version is a separate design solution that exploits the strengths of vacuum tube amplification to optimize the signal conversion ability of today’s latest decoding modules and chips.
| Digital Inputs (2) | – Optical (TOSLink): PCM 44. 1k -192k 24bit / DOP DSD64 |
| – Coaxial (RCA): PCM 44. 1k -192k 24bit / DOP DSD64 | |
| MUSIC SERVER (IIs) | Raspberry Pi 4-2G |
| Software | Volumio |
| USB | 2 x USB 2.0 (Total max 100mA) |
| 2 x USB 3.0 (USB, HDD, SSD . . . Total max 500mA) | |
| LAN | Gigabit |
| Analog Outputs | |
| Connector | 1 Stereo Pair of RCA |
| 1 Stereo Pair of XLR | |
| Tubes | 1 x 12AU7 2 x EL-84 |
| Coupling | Single Ended Transformer |
| Digital Decoder | ES9038 PCM 44.1kHz – 384kHz 32bit / DSD64 – DSD256 |
| Feature | Full feature remote control and selector: Volume, Digital Inputs, Mute, Filter |
| Frequency response | 20Hz – 20kHz (+/-0.2dB) |
| Power Requirements | 230V (possible to set 100 /110/117/240v/50-60Hz by different markets) |
| Power Consumption | 36W |
| Dimensions (W x D x H) | 45 x 40 x 12.5 (cm) |
| Weight | 17kgs |
