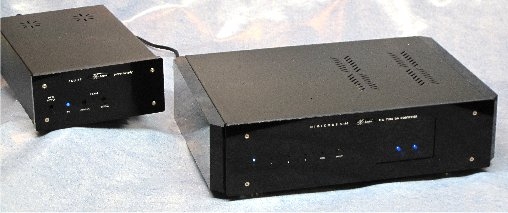

Lector Digicode S 192

vollsymmetrischer Röhren 192kHz 24-bit DAC

mit 4 wählbaren Eingängen und externem Netzteil

Type of Unit:                       Convertitore D-A

Output impedance:             250 ohm

Jitter interface:                   20 ps

Frequency Response:       15 - 96 kHz   +/- 1 dB

Input  digital Impedance:     75 ohm spdif / 110 ohm aes-3

Harmonic Distortion:           THD < 0.1 %

S/N Ratio:                           100 dB ( A-weighted )

Tube output:                       ECC-81/12AT7 x 4




 AC Main Voltages:            100/110/230/240 VAC - 50/60 Hz - 100 VA

Dimensions ( W x D x H ):  440 mm x 300 mm x 105 mm

Weight ( Net - Gross ):       8 kg - 10 kg
