SennaSound - Orca Line Vorstufe

About This Product

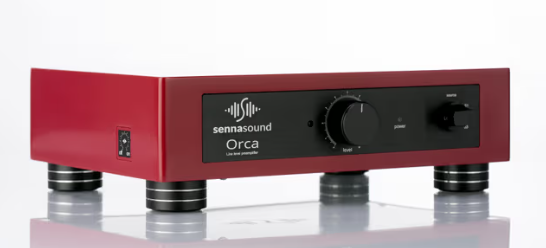

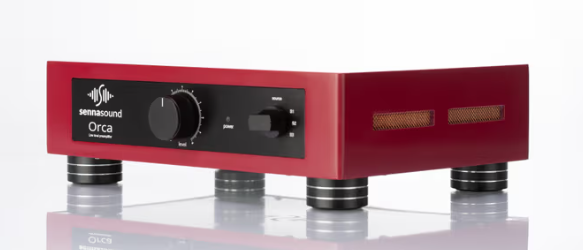

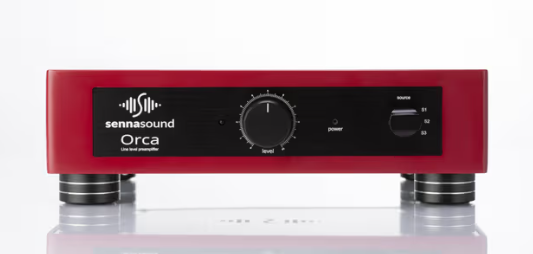

Precision line preamplifier delivering transparent, distortion-free amplification for discerning audiophiles.



Technical Details

Name: Orca

• Class Of Operation: Class A
• Input Stage: J-Fet
• Input Impedance: 47 Kohms
• Output Impedance: 300 ohms

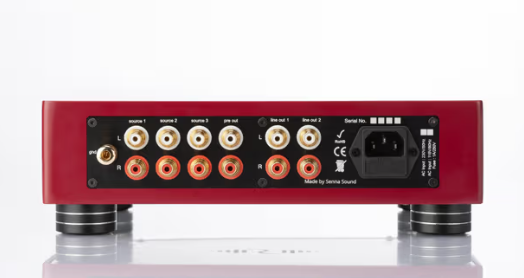

• Inputs: 3x RCA
• Outputs: RCA Line out x 2 (300 ohms output impedance), Preout – volume controlled, no gain
• Gain: 17dB
• Thd: 0.3% (1 KHz / 4Vef)
• Snr: 95dB
• Frequency Bandwidth: 5Hz (-1dB) – 250kHz (-3dB)
• Input Voltage: 230V/50Hz or 115V/60Hz or by request
• Power Consumption: 20W
• Remote Control: Controlled volume control
• Size: 280 x 200 x 85 mm
• Weight: 6kg
