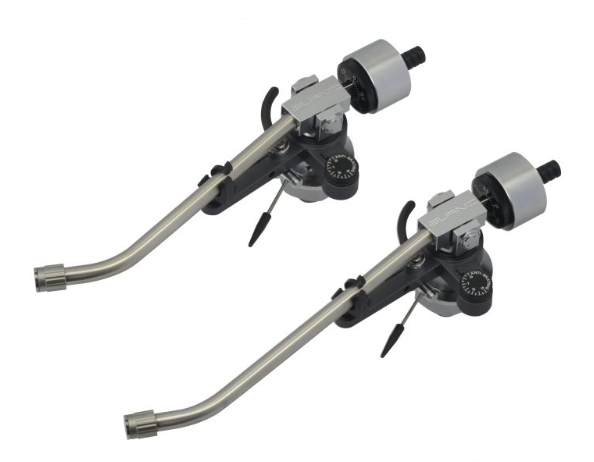

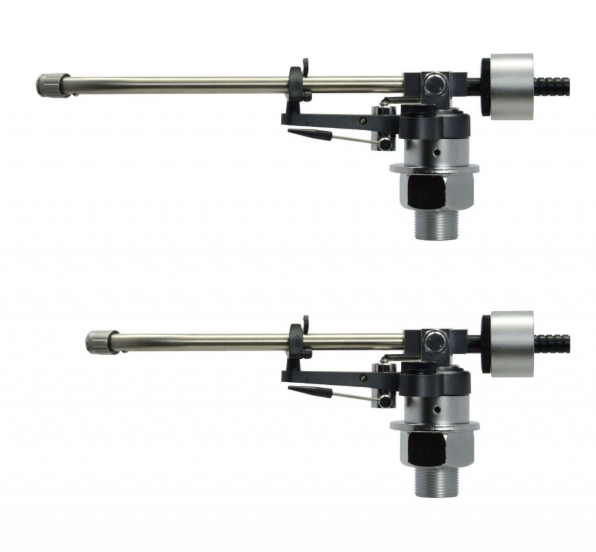

Glanzlab - MH-9B/9Bs/9Bt Tonarm

Variante 1 - MH-9B ohne Headshell
Variante 2 - MH-9Bs mit Headshell
Variante 3 - MH-9Bt mit Headshell



• The arm pipe and vertical shaft parts (which greatly influence sound quality) are made from stainless steel.
• Along the main conduction tube we have reproduced a material close to stainless steel supplement, using brass with a tough chrome plating
• The fulcrum is strongly supported with radial bearings
• The inside force canceler, Arm Resting Device and Arm Lifting Device are insulated with ABS resin, and reduces reverberation distortion

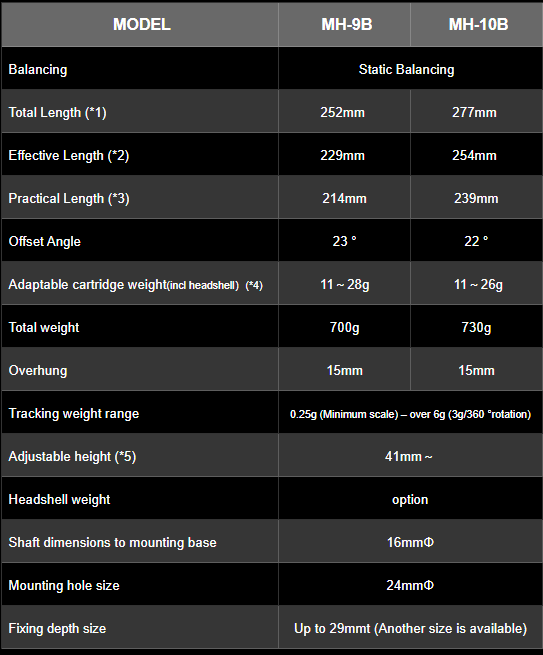

 MODEL     MH-9B     MH-10B
Balancing     Static Balancing
Total Length (*1)     252mm     277mm
Effective Length (*2)     229mm     254mm
Practical Length (*3)     214mm    239mm
Offset Angle    23 °    22 °
Adaptable cartridge weight(incl headshell）(*4)    11～28g     11～26g
Total weight    700g    730g
Overhung    15mm    15mm
Tracking weight range    0.25g (Minimum scale) – over 6g (3g/360 °rotation)
Adjustable height (*5)    41mm～
Headshell weight    option
Shaft dimensions to mounting base    16mmΦ
Mounting hole size    24mmΦ
Fixing depth size    Up to 29mmt (Another size is available)
