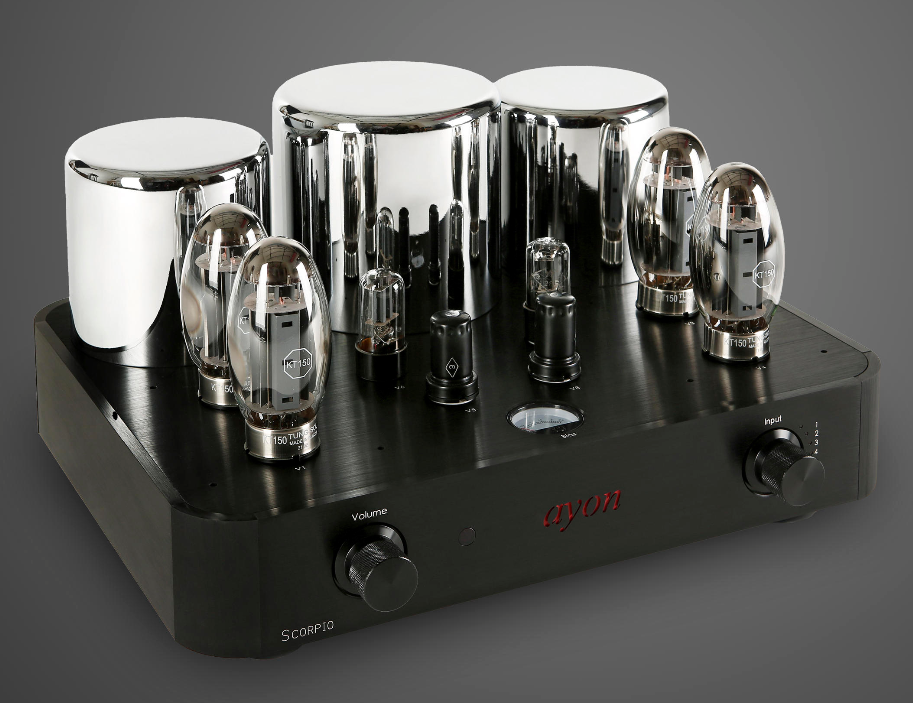

The Scorpio III offers a significant development of our highly esteemed Scorpio II, with the mains transformer and power supply being reinforced and new output transformers being installed. However, the appearance and basic architecture have been retained.
The integrated Scorpio III amplifier combines neutrality and lively dynamics, coupled with high musicality that is unparalleled in this class.
Perfect workmanship, elegant, discreet design and outstanding sound performance make the “Scorpio III” unique and sets an absolute new price-performance standard in its class.
| Amplifier | Ayon Scorpio III |
| Class of Operation | Triode* or Pentode mode, Class-A* |
| Tube Complement | 4 x KT150, KT88 or EL34 |
| Load Impedance | 4 & 8 Ohms |
| Bandwidth | 15Hz – 40kHz |
| Output Power-Pentode KT150/EL34/KT88 | 2 x 55 W / 2 x 38W / 2 x 43W |
| Output Power-Triode mode KT150/EL34/KT88 | 2 x 35 W / 2 x 25W / 2 x 30W |
| Input sensitivity for full power | 350mV |
| Input Impedance at 1 kHz | 100 KΩ |
| NFB | 0dB |
| Volume Control | Yes |
| Remote Control | Yes |
| Inputs – Analog | 4x Line |
| Input – USB/DAC – Digital (optional) | 32 bit, PCM 384KHz & DSD 256 |
| Dimensions (WxDxH) cm | 46x36x26 cm |
| Dimensions (WxDxH) cm (shipping) | 60x53x41 cm |
| Weight-net / Shipping weight | 29 kg / 37kg |
Specifications subject to change without notice
