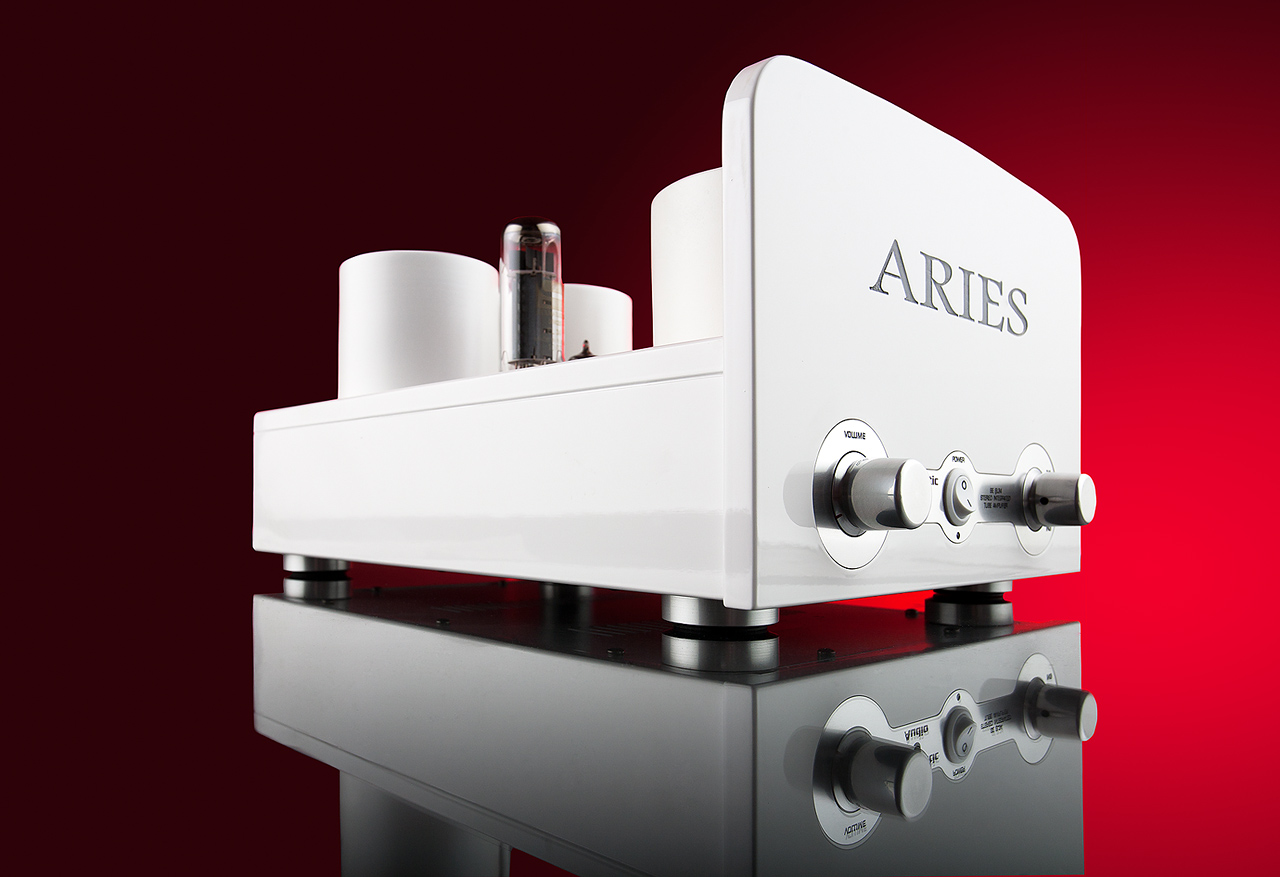

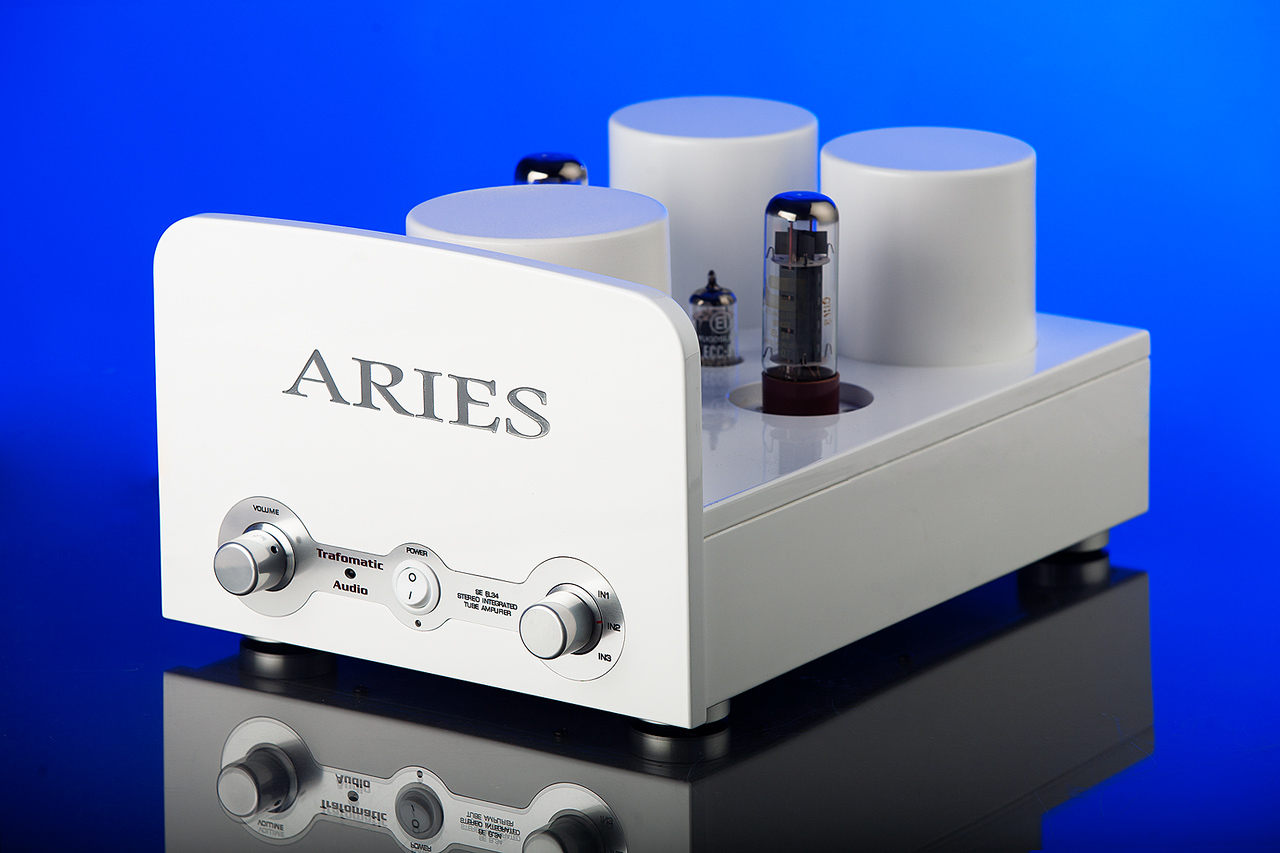

Like our custom 2A3 monos and reference white Kaivalya EL84 monos, the Aries integrated began life as a custom commission. Unlike the two others, this time the client wasn’t a private music lover but hifi distributor. He’d read a review about how the Kaivalyas came into being. Now he was inspired to ask whether we could design for him a low-power amplifier which he would bundle with the Hoyt Bedford line of single-driver speakers he imports to Australia. Their sensitivity requires little power. Their value pricing asked for an equally affordable but quality amplifier. Thus was born the Trafomatic Audio Aries.

Description:
It is a class A single-ended triode circuit with, per channel, one EL34 driven by half an ECC81 double triode. There are three inputs and one pre-out to support a subwoofer. Input sensitivity is 0.85Vrms, THD 1.55% at 1 watt. Bandwidth is 10Hz (-2dB) – 40kHz (-3dB). Size is 350 x 220 x 200mm. Weight is 12kg. Following in the footsteps of our special Kaivalya monos, the finish is modern gloss white lacquer.



Class of operation:
Single-ended class A
Output power: 2x6W
Tubes complement:
2 x EL34, 1 x ECC81
Inputs: CD, Tuner, Aux
Speakers output: 8 ohms, preout
Headphone output: 20-150 ohms, 1.5 W at 50 ohms
Input sensitivity: 0.85Vrms
THD: 1.55% – 1W
Bandwidth: 10Hz (-2dB) – 40KHz (-3dB)
S/N ratio: 88dB
Input impedance: 100K
Power consumption: 130VA
Input voltage: 230V/50Hz (100-120-220-240V available on request)
Size: 350 x 220 x 200mm
Weight: 12kg
