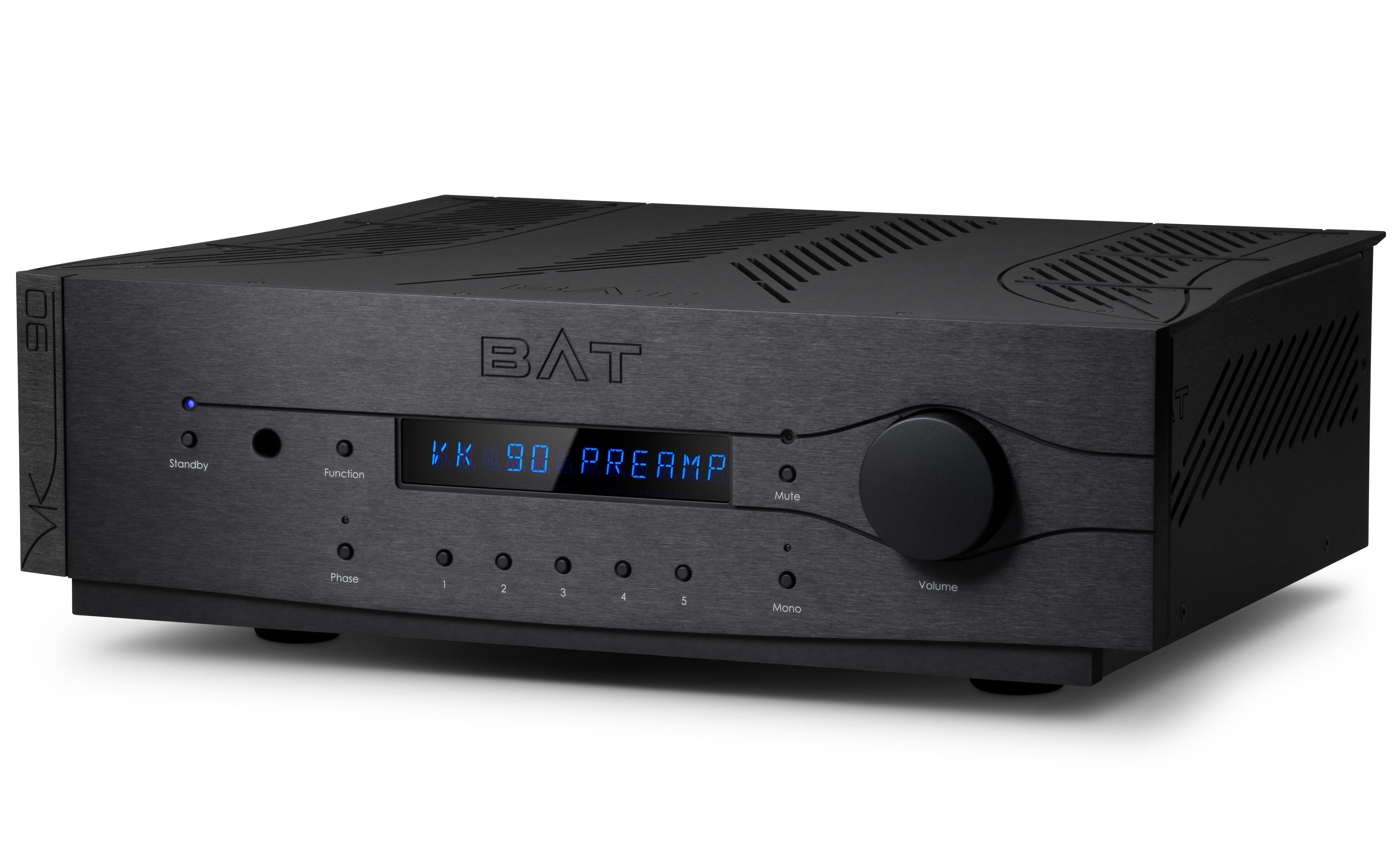

Balanced Audio Technology - VK-90 Röhrenvorverstärker
Art.Nr.: bat-vk90
Hersteller: BAT
Second-Generation Transformer-Coupled Outputs Provide Exceptional Purity
Featuring transformer-coupled, high-current, single-gain stage topology, VK-90 is the finest single-chassis preamplifier ever created by Balanced Audio Technology. Wound with Cardas’ finest copper wire, the second-generation transformer-coupled outputs catapult the performance of this fully balanced, zero-feedback design to a reference level. Each transformer comes encapsulated within a mu-metal shield for the ultimate in signal purity and noise isolation. Electrically, these second-generation transformers improve VK-90’s ability to drive low-impedance loads. Sonically, they offer greater transparency than the already revered performance established by BAT’s first-generation transformer design.
User-Friendly Interface and Customizable Options
Boasting one of the most flexible user interfaces in the industry, VK-90 offers customizable options that range from dimming to fading and source-naming. It can also be fully upgraded to a REX 3 preamplifier. And you can always get the volume just right courtesy of a proprietary electronic shunt volume attenuator that offers 140 steps of 0.5dB resolution. In the design, discrete metal film resistors bleed the unused signal to ground. From deep bass to extraordinary dynamics and layered transparency, VK-90 is your new reference.
Look Under the Hood: Eight 6H30 SuperTubes
More than a decade ago, BAT introduced the world to the 6H30 SuperTube. VK-90 continues the tradition by using eight 6H30 SuperTubes to form an extraordinarily high-current, low-impedance drive engine. As BAT wrote upon introduction, “comparing the 6H30 tube to a standard 6922 is like comparing a Formula 1 race car to a family sedan.” In VK-90, the signal is effectively transmitted through only one gain stage. The Unistage™ circuit provides the ultimate simplicity of amplifying the incoming signal only once, while using no global feedback to double back on the straight-through signal integrity.
Breakthrough Design: Third-Generation SuperPak
VK-90 touts Balanced Audio Technology’s all-new, third-generation SuperPak in its power supply design. It's a significant rethinking of what is possible from an energy storage device. For the first time, the BAT SuperPak features hybrid construction that incorporates two capacitors built and potted into each individual shell. An additional silver-in-oil capacitor—arguably the finest-quality capacitor offered at any price—is used as part of the Gen 3’s construction. The two capacitors are then assembled into a new low-resonance shell. The result: Low-level detail is revealed in a clear and unforced manner, while the overall sound has a beguiling sweetness and naturalness from top to bottom.
Specifications
Hersteller: BAT
Second-Generation Transformer-Coupled Outputs Provide Exceptional Purity
Featuring transformer-coupled, high-current, single-gain stage topology, VK-90 is the finest single-chassis preamplifier ever created by Balanced Audio Technology. Wound with Cardas’ finest copper wire, the second-generation transformer-coupled outputs catapult the performance of this fully balanced, zero-feedback design to a reference level. Each transformer comes encapsulated within a mu-metal shield for the ultimate in signal purity and noise isolation. Electrically, these second-generation transformers improve VK-90’s ability to drive low-impedance loads. Sonically, they offer greater transparency than the already revered performance established by BAT’s first-generation transformer design.
User-Friendly Interface and Customizable Options
Boasting one of the most flexible user interfaces in the industry, VK-90 offers customizable options that range from dimming to fading and source-naming. It can also be fully upgraded to a REX 3 preamplifier. And you can always get the volume just right courtesy of a proprietary electronic shunt volume attenuator that offers 140 steps of 0.5dB resolution. In the design, discrete metal film resistors bleed the unused signal to ground. From deep bass to extraordinary dynamics and layered transparency, VK-90 is your new reference.
Look Under the Hood: Eight 6H30 SuperTubes
More than a decade ago, BAT introduced the world to the 6H30 SuperTube. VK-90 continues the tradition by using eight 6H30 SuperTubes to form an extraordinarily high-current, low-impedance drive engine. As BAT wrote upon introduction, “comparing the 6H30 tube to a standard 6922 is like comparing a Formula 1 race car to a family sedan.” In VK-90, the signal is effectively transmitted through only one gain stage. The Unistage™ circuit provides the ultimate simplicity of amplifying the incoming signal only once, while using no global feedback to double back on the straight-through signal integrity.
Breakthrough Design: Third-Generation SuperPak
VK-90 touts Balanced Audio Technology’s all-new, third-generation SuperPak in its power supply design. It's a significant rethinking of what is possible from an energy storage device. For the first time, the BAT SuperPak features hybrid construction that incorporates two capacitors built and potted into each individual shell. An additional silver-in-oil capacitor—arguably the finest-quality capacitor offered at any price—is used as part of the Gen 3’s construction. The two capacitors are then assembled into a new low-resonance shell. The result: Low-level detail is revealed in a clear and unforced manner, while the overall sound has a beguiling sweetness and naturalness from top to bottom.
Specifications
- Power Supply: Third generation SuperPak: 8x50uF with internal silver/oil hybrid construction Silver gold oil bypass caps
- Signal Path: Unistage design with only one gain block and no capacitors in signal path
- Output: Second generation output transformers with Cardas OFC wiring
- Global Feedback: None
- Inputs: 5 XLR
- Outputs - Main: 2 XLR
- Outputs - Tape: 1 XLR
- Maximum Gain: 18dB
- Volume Control Resolution: 0.5dB
- Volume Control Number of Steps: 140
- Frequency Response: 2Hz to 200kHz
- Input Impedance (minimum): 100kΩ
- Output Impedance: 200Ω
- Noise (unweighted): 100dB
- Distortion at 2V output: 0.005%
- Maximum Output Signal: 40V
- Absolute Polarity: Switchable
- Power Consumption: 250VA
- Tube Complement: 8x 6H30
- Dimensions (cm): 49 x 15 x 40
- Weight: 19kg
