MFE - TA 300 SE Röhrenverstärker

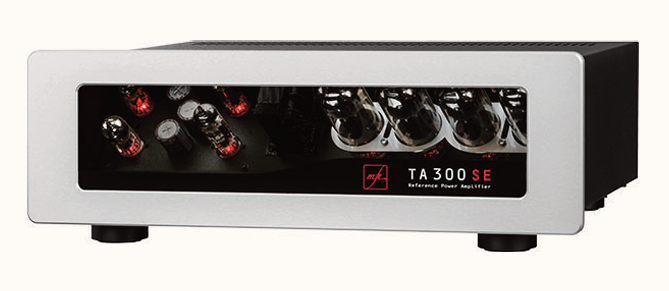

With a high damping factor and enormous power reserve, this amplifier effortlessly drives any speaker. The no-load stability also makes separate operation on a subwoofer possible. The tubes are built into the housing for safety reasons, but the front plate of the amplifier is equipped with a bronze tinted glass to still enjoy the glow of the tubes.


Weight 28 kg
Dimensions (WxHxD) 483 × 150 × 400 mm
Circuit technology Fully symmetrical, directly linked output stage
Front panel Silver grey or black anodized, 8 mm, sunken bronze‑tinted sight glass
NF inputs 1× Cinch, 1× XLR (Neutrik)
Input selection Rocker switch: Cinch / XLR
Loudspeaker outputs 1× universal terminals, 1× Speakon (Neutrik)
Power built‑in connectors 4.0 AT (230V) / 6.0 AT (115V)
Phase glow lamp “Off” when connector is correct
Main switch Power on/off
Remote power on 12V = “on”
Power consumption 130 / 500
Nominal voltage 115 / 230V ~ 50/60Hz
Input resistance 10 kΩ unbalanced, 20 kΩ balanced
Load resistance 4–16 Ω
Max. output power ~300 W
Input sensitivity 1.5 V
Output stages 4× 6P42S‑C (EL509/EL519/PL509/PL519)
Driving stage 2× PL84
Input stage 1× 12AX7, 1× ECC85
Mains fuse 1× 4/6 AT (low power connectors) / external
Power supply fuses 2× 1.6 AT (High voltage), 1× 2 AT (Heating) / internal
