Furutech - FT-SWS (R) NCF & FT-SWS-D (R) NCF - Wandsteckdose

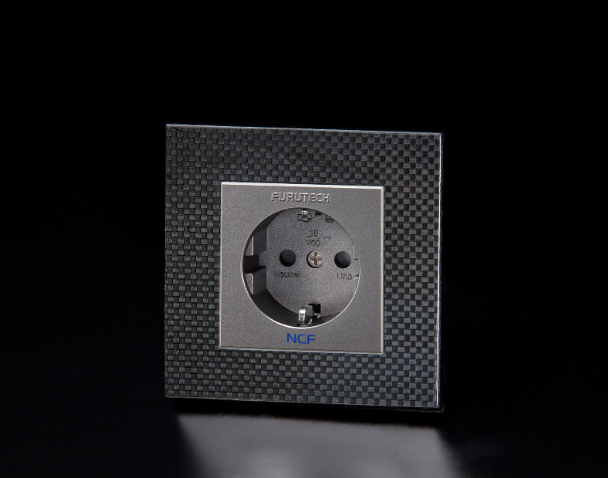

Variante 1 - FT-SWS (R) NCF Wandsteckdose, Carbon, Kontakt rhodiniert, mit NCF Technologie

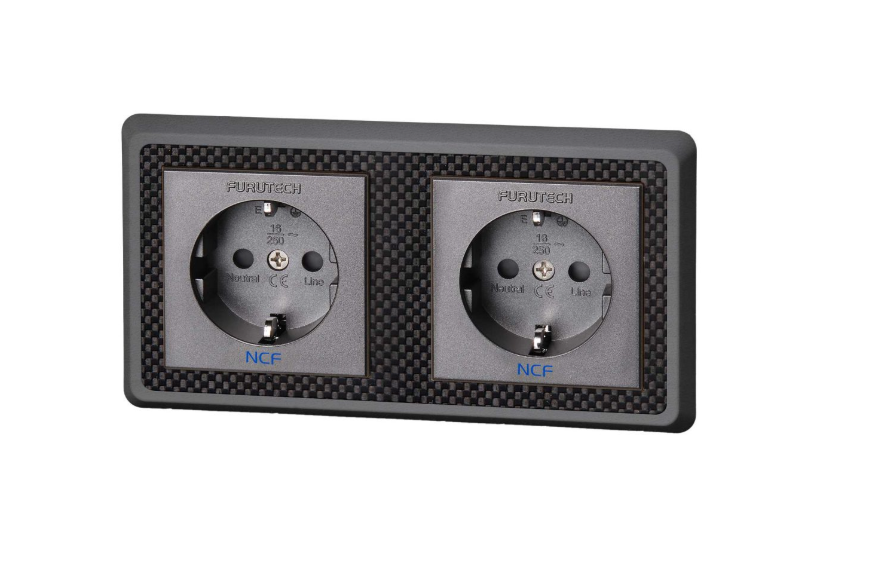

Variante 2 - FT-SWS-D (R) NCF Wand-Doppelsteckdose, Carbon, Kontakt rhodiniert, mit NCF Technologie


FEATURES

Nano Crystal² Formula – Nano Crystalline, Ceramic and Carbon Powder
Incorporated into new NCF series of Furutech products, Nano Crystal² Formula — NCF is comprised of a special crystalline material that has two “active” properties. First, it generates negative ions that eliminate static and secondly, it converts thermal energy into far-infrared. Furutech then combines this remarkable crystalline material with nano-sized ceramic particles and carbon powder for their additional “Piezo Effect” damping properties. The resulting Nano Crystal² Formula is the ultimate electrical and mechanical damping material – only found in Furutech products!

SPECIFICATIONS

• Rhodium plated α (Alpha) Pure Copper main Conductor (t：0.5mm)
• Insulation Materials: Nylon/fiberglass incorporating special “NCF” anti-resonance damping material – nano-sized crystalline, piezo ceramic particles and carbon powder.
• 1.0mm thick Bracket with a Zinc/steel brace plate
• Carbon fiber finished Cast Zn-Mg Alloy Front Plate
• Specified for wire diameters of 2.8mm or 5.5 Sq.mm/10AWG Max. (set screw)
• Dimensions: 95.0mm (L) x 95.0mm (W) x 48.0mm(H)
• Furutech’s total attention to detail and build quality extends right down to a specially designed patent-pending pressure plate that increases the contact area of the Alpha Conductors.


Variante 2


FT-SWS-D NCF(R) Rhodium Plated Non-magnetic pure copper conductors with a Carbon and Glass fiber finished front plate.

An engineering piece of art. The finest high end performace schuko wall socket available

FEATURES

Type: 2-pole+earth
Rating: 16A 250V A.C.

Nano Crystal² Formula (NCF).
Incorporated into selected Furutech products, NCF features a special crystalline material that has　two ‘active’ properties. First, it generates negative ions that eliminate static. Second, it converts thermal energy into far infrared. Furutech combines this remarkable material with nano-sized ceramic particles and carbon powder for their additional ‘piezoelectric effect’ damping properties. The resulting Nano Crystal² Formula is the ultimate electrical and mechanical damping material. Created by Furutech, it is found exclusively in Furutech products.

SPECIFICATIONS

• α (Alpha) Pure copper main conductor (t：0.5mm)
• Insulation Materials: Nylon/fiberglass with special “NCF” anti-resonance damping material – nano-sized crystalline, piezo ceramic particles and carbon powder
• Bracket with a 1.0mm thick Zinc/steel brace plate
• Beautifully-crafted Carbon fiber finished Aluminum face plate (color coated).
• Specified for wire diameters of 2.8mm or 5.5 Sq.mm/10AWG Max. (set screw)
• Dimensions: 152.0mm (L) x 81.0mm (W) x 48.0mm(H)
• Furutech’s total attention to detail and build quality extends right down to a specially designed patent-pending pressure plate (see below) that increases the contact area of the Alpha Conductors.
