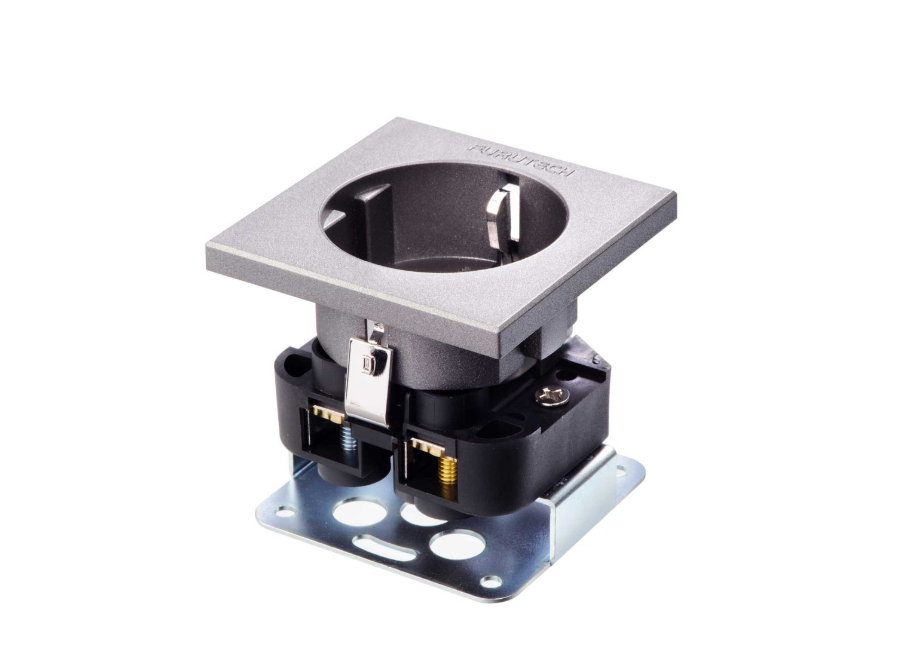

Fututech - FT-SDS (G) & FT-SDS (R) NCF - Einbausteckdose

Variante 1 - FT-SDS (G) Einbausteckdose, Kontakt vergoldet
Variante 2 - FT-SDS (R) NCF Einbausteckdose, Kontakt rhodiniert, mit NCF Technologie

RATING

Rhodium Plated or 24 k Gold Plated Non-magnetic conductors
High performance upgrade schuko sockets for use in power strips

FEATURES

Type: 2-pole+earth
Rating: 16A/250V A.C.

SPECIFICATIONS

•α (Alpha) Pure Copper main Conductor(t：0.5mm)
•Material: Nylon/fiberglass body and Polycarbonate cover
•1.0mm thick Zinc/steel brace plate Base Bracket
•Specified for wire diameters of 2.8mm or 5.5 Sq.mm/10AWG Max. (set screw)
•Dimensions: 54.7mm (L) x 54.7mm (W) x 52.5mm(H)
•Furutech’s total attention to detail and build quality extends right down to a specially designed
patent-pending pressure plate that increases the contact area of the Alpha Conductors.
